PEM-HHS-1X Halogen And Halides Sampling Equipment

Send Inquiry

Request To Call Back

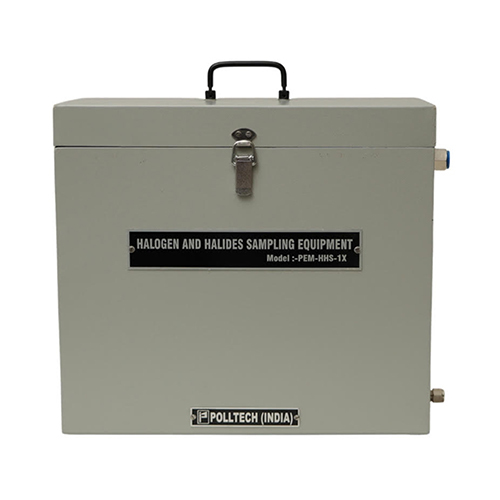

PEM-HHS-1X Halogen And Halides Sampling Equipment

Get a Price/Quote

MOQ : 1 Piece

PEM-HHS-1X Halogen And Halides Sampling Equipment Specification

Automation Grade
Manual

Test Range
As per method requirements

Humidity
Up to 85% RH

Features
Easy glass tube replacement, corrosion-resistant body

Application
Halogen and Halides determination in samples

Mounting Type
Bench-top

Number of Specimens
1 at a time

Port Size
6 mm OD hose connection

Specimen Size
Tube type - 18 mm ID x 150 mm length

Accuracy
Depends on method and reagents

Response Time
Method-dependent

Temperature
Ambient to 60C

Max Height
Approx. 350 mm

Operating Voltage
230V AC

Equipment Type
Sampling Equipment

Gas Pressure
0.5 to 1 Kg/cm2

Power Supply
230V AC, 50Hz

Measuring Range
Method-dependent

Interface Type
Manual control

Display Type
No digital display

Frequency
50 Hz

Usage
Laboratory sampling for halogen & halide analysis

Capacity
One sample per run

Machine Weight
Approx. 6 Kg

Test Speed
Standard

Test Width
Glass tube 18 mm ID

Control Mode
Manual

Operation
Unheated, requires external heating if needed

Work Environment
Laboratory, Analytical Usage

Accessories Provided
Glass tube, tubing, holder, sample bottle

Dimensions
375 mm x 220 mm x 350 mm (L x W x H)

Compliance Standards
Follows BIS/ASTM/IEC testing methods

Sample Introduction
Via tube and bottle inlet

Flow Meter Type
Rotameter provided for flow indication

Material of Construction
Mild steel epoxy powder coated and borosilicate glass

Safety Features
Gas leak-proof joints, over-pressure protection

PEM-HHS-1X Halogen And Halides Sampling Equipment Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About PEM-HHS-1X Halogen And Halides Sampling Equipment

Discover the PEM-HHS-1X Halogen and Halides Sampling Equipment, an extraordinary solution crafted from mild steel with epoxy powder coating and borosilicate glass. With favorable reviews for its splendid corrosion resistance and commanding safety features, this bench-top unit is ideal for laboratory analytical use. An integrated rotameter ensures precise flow indication, while gas leak-proof joints and over-pressure protection maximize safety. Accessories like the glass tube and sample bottle, alongside compliance with BIS/ASTM/IEC standards, make this manual, method-driven equipment a trusted choice for reliable halogen and halide determination. Order now to explore exceptional sampling accuracy.

Sophisticated Usage and Features

To operate the PEM-HHS-1X, simply introduce your sample via the tube and bottle inlet, ensuring laboratory bench-top placement. Designed for analytical work, it offers easy glass tube replacement, corrosion-resistant mild steel body, and manual control. Its splendid rotameter visualizes flow, and gas leak-proof joints provide top-tier safety. The unheated operation supports external heating if needed, delivering flexibility for halogen and halide analysis on diverse laboratory surfaces.

Quality Assurance, Sample Availability, and Transaction Terms

The PEM-HHS-1X is associated with premium certifications that guarantee methodical accuracy and reliability. For your convenience, sample units can be handed over upon request, ensuring confidence before purchase. Every piece is carefully packaged to protect its splendid construction during transit. Flexible payment terms are offered to streamline your procurement experience. Trust this manufacturer, service provider, and supplier in India for your laboratory's halogen and halide sampling needs.

FAQ's of PEM-HHS-1X Halogen And Halides Sampling Equipment:

Q: How is the PEM-HHS-1X Sampling Equipment used for halogen and halide analysis?

A: The equipment is operated manually by introducing the sample through the tube and bottle inlet. You then monitor testing via the rotameter flow indicator and conduct analysis following BIS, ASTM, or IEC methods.

Q: What safety measures are integrated into the PEM-HHS-1X unit?

A: The unit features gas leak-proof joints and over-pressure protection to ensure operator safety during laboratory sampling procedures.

Q: Where can the PEM-HHS-1X be installed and used?

A: This equipment is designed for bench-top mounting in laboratory environments suitable for analytical halogen and halide determination.

Q: When should an external heating source be applied?

A: The PEM-HHS-1X operates unheated, but external heating may be required based on the analytical method and sample characteristics you are using.

Q: What are the benefits of the corrosion-resistant construction?

A: The mild steel epoxy powder-coated body and borosilicate glass components offer outstanding resistance to corrosion, ensuring durability and longevity even in demanding laboratory environments.
