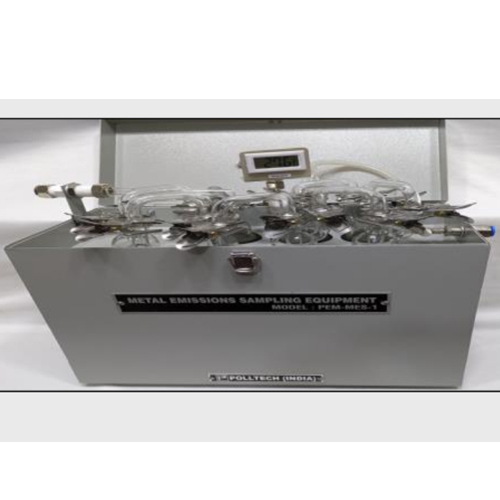

PEM-SES-1 Metal Emission Sampling Equipment

Send Inquiry

Request To Call Back

PEM-SES-1 Metal Emission Sampling Equipment

Get a Price/Quote

MOQ : 1 Piece

PEM-SES-1 Metal Emission Sampling Equipment Specification

Max Height
1.5 m (assembled)

Display Type
Digital LCD

Temperature
Ambient to 250C (sample line, heated)

Number of Specimens
Up to 5 samples/run

Frequency
50 Hz

Specimen Size
Standard filter (90 mm diameter)

Application
Sampling of hazardous metal emissions in stack or duct

Automation Grade
Semi-automatic

Mounting Type
Portable, stand mounted

Gas Pressure
0.5 - 2 bar

Interface Type
Analog/Digital output

Features
Portable, corrosion-resistant, high-temperature capability

Power Supply
230 V AC, 50 Hz

Accuracy
2% of reading

Port Size
1/4 inch NPT

Equipment Type
Metal Emission Sampling Equipment

Measuring Range
0.01 mg/m3 to 100 mg/m3 (depending on filter and analysis)

Test Range
Low to high emission flows

Resolution
0.01 mg/m3

Humidity
Up to 95% RH (non-condensing)

Response Time
<5 seconds

Operating Voltage
230 V AC

Usage
Industrial stack and duct emission monitoring

Capacity
Variable, based on filter type

Machine Weight
18 kg

Test Speed
Adjustable, up to 5 L/min

Test Width
90 mm filter holder

Test Stroke
Standard length 2 m (probe)

Control Mode
Manual/Automatic

Filter Material
Quartz or Glass Microfiber

Cooling System
Integrated impinger bath

Vacuum Pump Type
Oil-less rotary vane

Enclosure Protection
IP54

Alarm System
Over-temperature and pressure alarms

Sample Line
Heated PTFE, up to 3 m

Calibration
With NIST traceable standards

Sampling Method
Isokinetic sampling

Probe Material
Stainless steel 316L

Flow Meter Type
Rotameter and electronic

Ambient Conditions
0 to 45C operating

Data Logging
USB and SD card storage

PEM-SES-1 Metal Emission Sampling Equipment Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About PEM-SES-1 Metal Emission Sampling Equipment

Select the PEM-SES-1 Metal Emission Sampling Equipment for top-tier performance and precision in hazardous metal emission monitoring. This superior device offers special features such as isokinetic sampling, a choice of quartz or glass microfiber filters, and an oil-less rotary vane vacuum pump. Unbeatable in reliability, it includes an integrated impinger bath, heated PTFE sample lines, and dual-mode control. The system boasts special rate accuracy with NIST-traceable calibration and robust IP54 enclosure, making it ideal for demanding industrial environments. Enjoy advanced data logging, over-temperature, and pressure alarms for complete peace of mind.

Commercial Applications and Key Features

The PEM-SES-1 Metal Emission Sampling Equipment serves commercial sectors by enabling meticulous monitoring of hazardous metal emissions from industrial stacks or ducts. With semi-automatic usage, this machine is equipped for up to five samples per run and supports both manual and automatic control. Its superior features-such as a heated sample line, digital LCD display, and high-temperature resilience-ensure consistent, precise results. Robust construction and portable design make it an exceptional choice for industries with strict regulatory compliance demands.

Main Domestic Market and Sample Policy

PEM-SES-1 is primarily supplied and transported within India's expansive industrial sector. We offer sample availability to facilitate thorough evaluation before bulk purchase. Thanks to reliable transport services and prompt supply arrangements, users across the domestic market benefit from seamless access and support. Our clear sample policy ensures clients receive the necessary experience and information to make an informed procurement decision, enhancing satisfaction and confidence in the equipment's performance.

FAQ's of PEM-SES-1 Metal Emission Sampling Equipment:

Q: How does the PEM-SES-1 ensure accurate metal emission sampling?

A: The PEM-SES-1 guarantees accuracy through isokinetic sampling, NIST-traceable calibration standards, and precision components like rotameter/electronic flow meters and a digital LCD display, achieving results with 2% accuracy.

Q: What are the main features that make this equipment suitable for industrial application?

A: Key features include a corrosion-resistant stainless steel probe, heated PTFE sample lines, integrated impinger bath cooling, portable stand-mounted enclosure, IP54 protection, and robust alarms for unmatched operational reliability in harsh conditions.

Q: When should periodic calibration and maintenance be performed?

A: Periodic calibration should follow regulatory guidelines or internal quality schedules, typically before and after each significant project or minimum annually, ensuring accuracy and compliance with industrial standards.

Q: Where can the PEM-SES-1 be transported and installed?

A: The equipment is primarily supplied and transported within India and can be installed conveniently on-site at industrial stacks, ducts, or emission points, thanks to its portable, stand-mounted design.

Q: What is the process for receiving a sample and understanding the sample policy?

A: Clients can request sample availability through supply channels. Our transparent sample policy ensures timely sample transport and sufficient testing time for clients to evaluate before committing to larger purchases.

Q: How does the data logging feature benefit industrial monitoring?

A: The USB and SD card data logging capability allows users to effortlessly store, retrieve, and analyze sampling data, supporting in-depth process optimization, regulatory reporting, and operational traceability.
