Pressure Metering Instruments

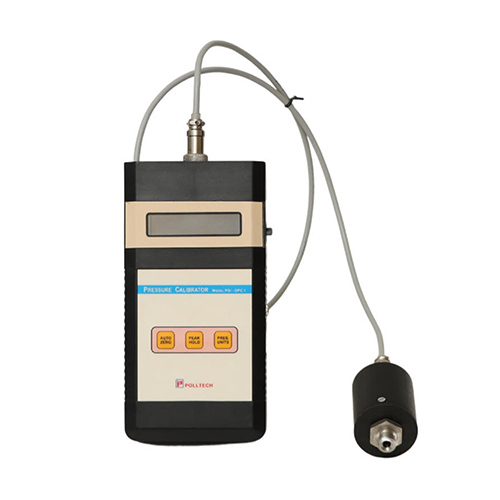

• Equipment Type
• Digital Pressure Calibrator

• Accuracy
• 0.05% FS

• Application
• Calibration of pressure instruments

• Automation Grade
• Semi-Automatic

• Control Mode
• Manual / Automatic

• Display Type
• LCD Digital Display

• Features
• Backlight, data hold, auto power off

• Gas Pressure
• up to 10000 kPa

• Humidity
• 90% RH

• Interface Type
• RS232

• Machine Weight
• 1 kg

• Measuring Range
• -80 kPa to 10000 kPa

• Mounting Type
• Handheld

• Number of Specimens
• Single

• Operating Voltage
• 4.5V

• Port Size
• 1/8 BSP (F)

• Power Supply
• 3 x 1.5V AA batteries

• Resolution
• 0.01 kPa

• Response Time
• 1 second

• Temperature
• 0C to 50C

• Test Range
• -80 kPa to 10000 kPa

• Usage
• Testing and calibrating pressure gauges and transmitters

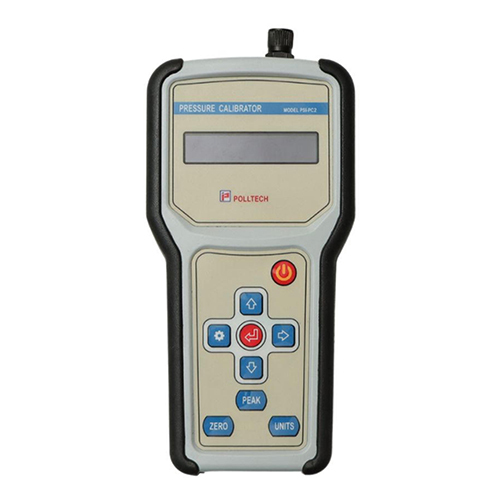

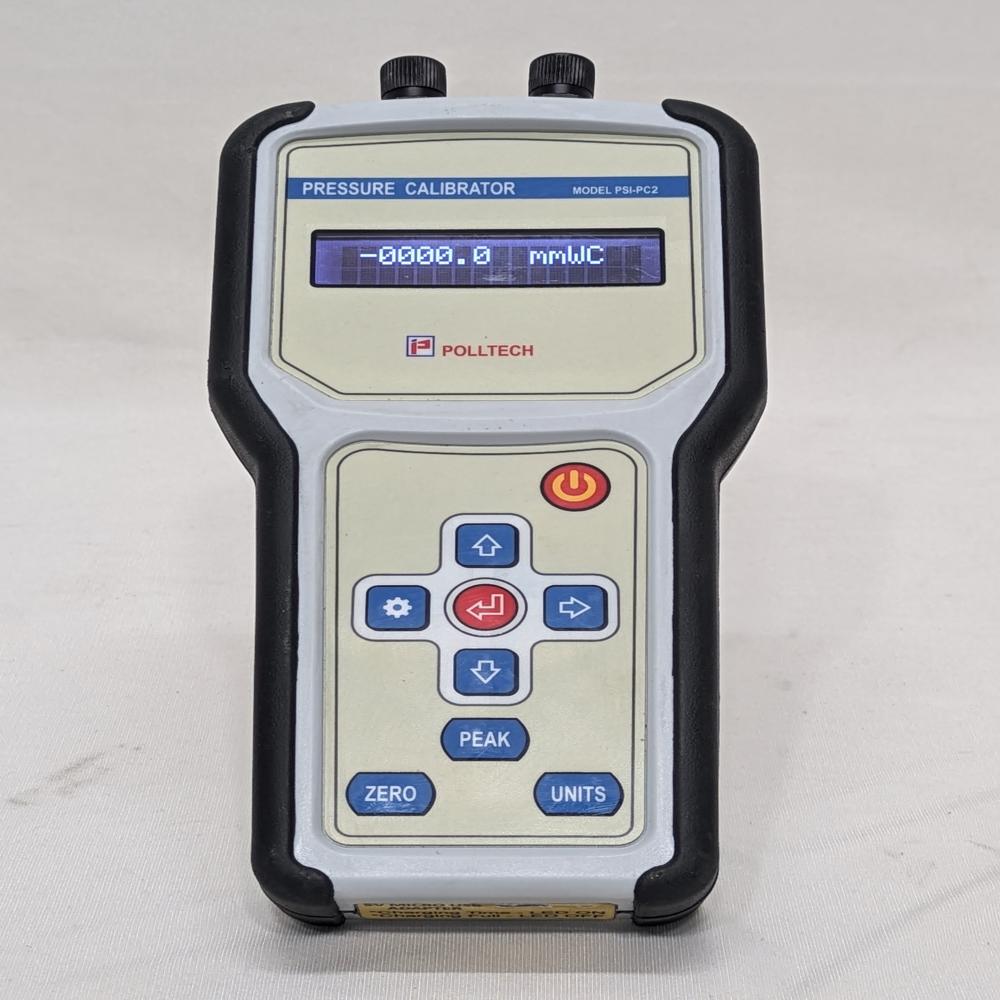

• Equipment Type
• Digital Pressure Calibrator

• Accuracy
• 0.05% of reading

• Application
• Calibration of pressure gauges, transmitters, sensors

• Automation Grade
• Semi-Automatic

• Control Mode
• Manual / Automatic

• Display Type
• LCD Digital Display

• Features
• Backlit display, Data storage, Auto power-off

• Frequency
• 50/60 Hz

• Gas Pressure
• 0 to 20 bar max

• Humidity
• 0 - 90% RH (non-condensing)

• Interface Type
• RS232 / USB

• Machine Weight
• 1.5 kg

• Measuring Range
• -1 to 20 bar

• Mounting Type
• Portable / Bench-top

• Number of Specimens
• Single

• Operating Voltage
• 230V AC

• Port Size
• 1/8 BSP (female)

• Power Supply
• 230V AC, 50/60 Hz

• Resolution
• 0.001 bar

• Response Time
• <1 second

• Temperature
• 0C to 50C Operating

• Test Range
• -1 to 20 bar

• Usage
• Industrial calibration

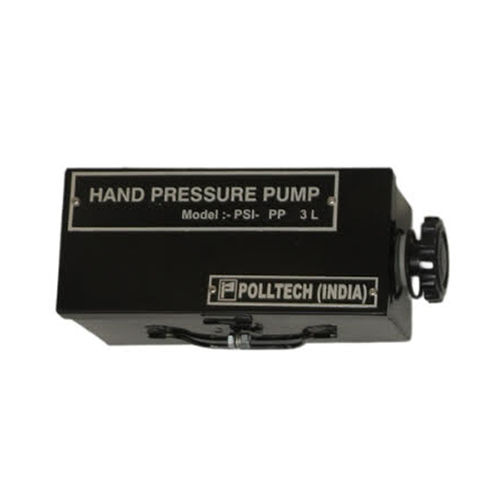

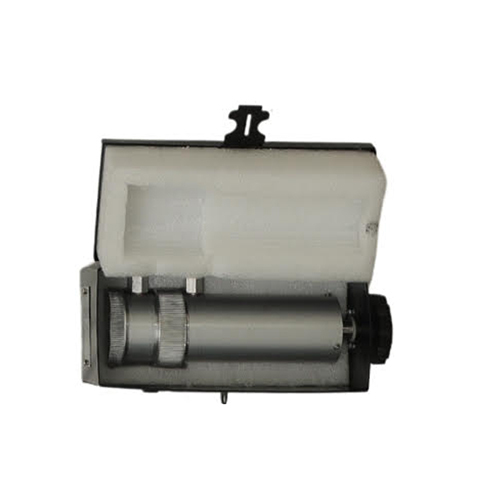

• Equipment Type
• Hand Pressure Pump

• Accuracy
• Depends on pressure gauge used

• Application
• Hydraulic/pressure calibration, testing gauges, valves, switches

• Automation Grade
• Manual

• Capacity
• 3 Liters Reservoir

• Control Mode
• Hand Operated

• Display Type
• Analog (Gauge connected externally)

• Features
• Portable, Lightweight, Corrosion Resistant Construction

• Interface Type
• Mechanical

• Machine Weight
• Approx. 2.5 kg

• Max Height
• Approx. 350 mm

• Measuring Range
• Up to 300 kg/cm2

• Mounting Type
• Bench/Portable

• Number of Specimens
• Single

• Port Size
• 1/4 BSP

• Resolution
• Depends on pressure gauge used

• Response Time
• Immediate (Manual Pump Action)

• Temperature
• Ambient

• Test Range
• Up to 300 kg/cm2 (4300 psi)

• Test Speed
• Manual Operation

• Test Stroke
• Up to 120 ml per stroke

• Usage
• For calibration and testing

• Equipment Type
• Hand Pressure Pump

• Accuracy
• Depends on master gauge used

• Application
• Calibration and testing of pressure gauges and instruments

• Automation Grade
• Manual

• Capacity
• 600 bar pressure generation

• Control Mode
• Hand Operated

• Display Type
• Gauge Attachment Required

• Features
• Portable, lightweight, easy to operate, robust construction, easy maintenance

• Gas Pressure
• Up to 600 bar (8700 psi)

• Hardness
• High durability metal construction

• Humidity
• 0-95% RH (Non-condensing)

• Interface Type
• Mechanical

• Machine Weight
• 2 kg

• Max Height
• Approx. 250 mm

• Measuring Range
• 0-600 bar

• Mounting Type
• Portable/Table-top

• Number of Specimens
• 1

• Port Size
• 1/4 BSP

• Power Supply
• Not Required (Hand Operated)

• Resolution
• Fine control via adjusting knob

• Response Time
• Immediate (manual)

• Specimen Size
• Standard (suitable for most pressure gauges)

• Temperature
• -10C to 60C

• Test Range
• 0-600 bar

• Test Speed
• Manual

• Usage
• Industrial and Laboratory Calibration

• Equipment Type
• Hand Pressure Test Pump

• Accuracy
• 0.05% F.S.

• Application
• Pressure calibration, leakage testing, pressure instrument calibration

• Automation Grade
• Manual

• Capacity
• Up to 60 bar

• Control Mode
• Manual

• Display Type
• Analog (Gauge not included)

• Features
• Portable, corrosion-resistant, maintenance-free, lightweight, ergonomic handle

• Gas Pressure
• Not Applicable (For Liquid Media)

• Humidity
• 0-95% RH (Non-condensing)

• Interface Type
• Mechanical (Threaded Connection)

• Machine Weight
• 1.2 kg

• Max Height
• 210 mm approx.

• Measuring Range
• 0 to 60 bar

• Mounting Type
• Handheld

• Number of Specimens
• 1

• Port Size
• 1/4 inch BSP

• Power Supply
• Not Required (Hand Operated)

• Resolution
• 0.01 bar

• Response Time
• Immediate (Manual Operation)

• Specimen Size
• Compatible with standard test ports

• Temperature
• 0C to 50C

• Test Range
• Up to 60 bar (870 psi)

• Test Speed
• Manual, adjustable by operator

• Usage
• Field and laboratory pressure calibration

• Equipment Type
• Hand Pressure Pump

• Accuracy
• 1% F.S.

• Application
• Leak testing, instrument calibration, pressure testing

• Automation Grade
• Manual

• Capacity
• Up to 60 bar (870 psi)

• Control Mode
• Hand Operated

• Display Type
• Analog Gauge (standard)

• Features
• Portable, robust design, corrosion-resistant, easy maintenance

• Humidity
• 85% RH (operating)

• Interface Type
• Mechanical fittings

• Machine Weight
• 1.25 kg

• Max Height
• 135 mm

• Measuring Range
• 0-60 bar

• Mounting Type
• Bench/portable

• Number of Specimens
• Single Specimen

• Port Size
• 1/4 inch BSP

• Power Supply
• Not Required (Manual Operation)

• Resolution
• 0.1 bar

• Response Time
• Instantaneous (manual increase/relief)

• Specimen Size
• Standard for pressure lines

• Temperature
• 0C to 50C

• Test Range
• 0 to 60 bar

• Test Speed
• Manual (depends on operator)

• Test Stroke
• Up to 60 mm

• Usage
• Lab and field pressure testing

• Equipment Type
• Precision Low Pressure Generator

• Accuracy
• 0.05% F.S.

• Application
• Field calibration, laboratory use, precision pressure calibration

• Automation Grade
• Manual

• Control Mode
• Manual

• Display Type
• Digital LCD

• Features
• Portable, easy operation, fine adjustment, rugged carry case

• Humidity
• Up to 90% RH, Non-condensing

• Machine Weight
• 4.1 kg

• Measuring Range
• 0 to 4000 mmWC (model dependent)

• Mounting Type
• Desktop/Portable

• Number of Specimens
• Single channel

• Operating Voltage
• 9V DC (Battery)

• Port Size
• 1/8 BSP

• Power Supply
• Battery / External Power 230V AC, 50Hz

• Resolution
• 0.01 mmWC

• Response Time
• Instantaneous (depends on dead volume)

• Specimen Size
• Custom connections for standard devices

• Temperature
• 0C to 50C

• Test Range
• 0-1000 mmWC, 0-2000 mmWC, 0-4000 mmWC (selectable models)

• Test Speed
• Manual Adjustment

• Usage
• Precision pressure calibration

• Equipment Type
• Hand Pressure Pump

• Accuracy
• Depends on gauge attached

• Application
• Calibration and testing of pressure instruments

• Automation Grade
• Manual

• Capacity
• 50 ml reservoir

• Control Mode
• Hand Operated

• Display Type
• No inbuilt display (gauge dependent)

• Features
• Lightweight, portable, robust construction, fine control valve, maintenance free

• Humidity
• Up to 90% RH

• Interface Type
• Mechanical (1/4 BSP fitting)

• Machine Weight
• 1.5 kg

• Max Height
• 180 mm

• Measuring Range
• 0 to 700 bar

• Mounting Type
• Bench/Table top or handheld

• Number of Specimens
• Single specimen connection

• Port Size
• 1/4 inch BSP

• Power Supply
• Not required (manual)

• Resolution
• Depends on attached gauge

• Response Time
• Immediate (manual control)

• Specimen Size
• Compatible with standard test hoses/cylinders

• Temperature
• 0C to 50C

• Test Range
• Vacuum to 700 bar (10,000 psi)

• Test Speed
• Manual, operator dependent

• Test Stroke
• Up to 50 ml per stroke

• Usage
• Field and laboratory calibration

• Equipment Type
• Hand Pressure Pump

• Accuracy
• Operator dependent (for calibration pump intended to be used with external pressure gauge)

• Application
• Pressure calibration, testing and calibration of pressure gauges, transducers, and switches

• Automation Grade
• Manual

• Capacity
• Up to 60 bar

• Control Mode
• Manual hand-operated

• Display Type
• No display (use with external gauge)

• Features
• Lightweight, portable, easy operation, stable pressure generation

• Humidity
• 0-95% RH (non-condensing)

• Interface Type
• Mechanical

• Machine Weight
• Approx. 2.2 Kg

• Max Height
• 19 cm (approx.)

• Measuring Range
• Up to 60 bar

• Mounting Type
• Handheld / Portable

• Number of Specimens
• Single specimen at a time

• Port Size
• 1/4 BSP

• Power Supply
• Not required (manual operation)

• Resolution
• Depends on connected gauge

• Response Time
• Immediate, manual actuation

• Specimen Size
• Compatible with standard tubing connections

• Temperature
• 0C to 50C operating range

• Test Range
• Up to 60 bar (870 psi)

• Test Speed
• Manual, operator dependent

• Usage
• Pressure generation for calibration labs and field services

• Equipment Type
• Precision Low Pressure Generator

• Accuracy
• 0.05% F.S.

• Application
• Calibration and test of pressure instruments, transmitters, pressure switches, and manometers

• Automation Grade
• Manual

• Control Mode
• Manual / Micro-adjust Vernier

• Display Type
• N/A (analog/manual generator)

• Features
• Portable, micro-adjust knob, high-stability, low-leakage, quick connectors

• Gas Pressure
• Atmospheric to 1 bar

• Humidity
• 0 - 95% RH non-condensing

• Interface Type
• 1/8 BSP pressure port

• Machine Weight
• 4.5 kg

• Max Height
• 132 mm

• Measuring Range
• 0 to 1000 mbar

• Mounting Type
• Bench-top / Portable

• Number of Specimens
• Single-line connection

• Operating Voltage
• N/A (manual device)

• Port Size
• 1/8 BSP Female

• Power Supply
• Not required (portable/manual)

• Resolution
• 0.01 mbar

• Response Time
• Immediate (manual control)

• Temperature
• 0C to 50C

• Test Range
• 0 to 1 bar (0 to 1000 mbar)

• Test Speed
• Manual adjustment

• Usage
• Calibration lab, field testing, instrument bench

• Equipment Type
• Hand Pressure Pump

• Accuracy
• 0.05% F.S.

• Application
• Pressure calibration, leak testing, instrumentation

• Automation Grade
• Manual

• Capacity
• 40 bar output pressure

• Control Mode
• Hand operated

• Display Type
• Not included (used for calibration of external gauges)

• Features
• Lightweight, portable, easy priming, fine adjustment valve

• Humidity
• 0-95% RH (non-condensing)

• Interface Type
• Mechanical

• Machine Weight
• 1.8 kg

• Max Height
• 230 mm

• Measuring Range
• -0.95 bar (vacuum) to 40 bar

• Mounting Type
• Handheld/tabletop

• Number of Specimens
• Single

• Port Size
• 1/4 inch BSP (F)

• Power Supply
• Not required (manual)

• Resolution
• 0.01 bar

• Response Time
• Immediate/manual

• Temperature
• 0C to 50C

• Test Range
• -0.95 bar to 40 bar

• Test Speed
• Manual operation

• Test Stroke
• Up to 50 mL per stroke

• Usage
• Test and calibration of pressure instruments

• Equipment Type
• Hand Pressure Pump

• Accuracy
• 0.25% of F.S.

• Application
• Calibration, Hydraulic and Pneumatic Pressure Testing

• Automation Grade
• Manual

• Capacity
• 60 bar

• Control Mode
• Manual

• Display Type
• Dial/Analog (Gauge not included)

• Features
• Portable, Lightweight, Corrosion Resistant

• Gas Pressure
• Upto 60 bar

• Humidity
• 0 - 95% RH (Non-condensing)

• Machine Weight
• 1.2 kg

• Max Height
• Approx. 150 mm

• Measuring Range
• 0 - 60 bar

• Mounting Type
• Bench/Portable

• Number of Specimens
• Single Specimen

• Port Size
• 1/4 BSP

• Resolution
• Fine Adjustment Vernier

• Response Time
• Immediate (Manual Operation)

• Specimen Size
• Customizable

• Temperature
• 0C to 50C

• Test Range
• 0 - 60 bar

• Test Speed
• Manual Operation

• Usage
• Field and Laboratory Testing

• Equipment Type
• Hand Pressure Pump

• Accuracy
• 0.05% F.S.

• Application
• Pressure Testing, Calibration of Gauges and Transmitters

• Automation Grade
• Manual

• Capacity
• Upto 1000 bar Pressure Output

• Control Mode
• Manual Control

• Display Type
• Analog Pressure Gauge (Digital Optional)

• Features
• Lightweight, Portable, High-Pressure Generation, Easy Operation

• Gas Pressure
• Not Intended for Gas (Designed for Liquid Applications)

• Hardness
• Not Applicable for Assembly

• Humidity
• 85% RH

• Interface Type
• Mechanical Interface

• Machine Weight
• 3.5 kg

• Max Height
• 220 mm (approx)

• Measuring Range
• 0 to 1000 bar

• Mounting Type
• Tabletop, Portable

• Number of Specimens
• Single Specimen

• Port Size
• 1/4 BSP

• Power Supply
• Not Required (Manual)

• Resolution
• 0.01 bar

• Response Time
• Instantaneous (Manual Operation)

• Specimen Size
• Application Dependent

• Temperature
• 0C to 50C

• Test Range
• 0 to 1000 bar (or as specified)

• Test Speed
• Manual (Hand Operated)

• Test Stroke
• Up to 150 mm

• Usage
• Laboratory, Field Pressure Testing

• Equipment Type
• Hand Pressure Pump

• Accuracy
• 0.1% F.S.

• Application
• Hydraulic and Pressure Testing, Calibration

• Automation Grade
• Manual

• Capacity
• 3 Liter

• Control Mode
• Hand Operated

• Display Type
• Analog gauge (standard)

• Features
• Corrosion-resistant body, Compact design, Easy to operate

• Gas Pressure
• Up to 600 bar

• Humidity
• 0-90% RH (Non-condensing)

• Interface Type
• Mechanical fitting

• Machine Weight
• 2.5 kg

• Max Height
• 225 mm

• Measuring Range
• 0-600 bar

• Mounting Type
• Portable/Tabletop

• Number of Specimens
• Single specimen testing

• Port Size
• 1/4 inch BSP

• Power Supply
• Not required (Manual)

• Resolution
• 0.01 bar

• Response Time
• Instantaneous/manual

• Specimen Size
• Custom/N/A

• Temperature
• 0C to 50C

• Test Range
• 0-600 bar

• Test Speed
• Manual (dependent on operator)

• Test Stroke
• Up to 50 mm

• Usage
• Pressure calibration and testing

• Equipment Type
• Barometric Pressure Indicator

• Accuracy
• 0.5 hPa

• Application
• Measurement of atmospheric pressure

• Automation Grade
• Manual

• Control Mode
• Manual

• Display Type
• Digital LCD

• Features
• Lightweight, Portable, Easy to operate

• Gas Pressure
• Atmospheric

• Humidity
• 0-100% RH (non-condensing)

• Machine Weight
• 2.1 kg

• Measuring Range
• 600 to 1100 hPa

• Mounting Type
• Handheld/Portable

• Operating Voltage
• 9V DC

• Port Size
• 1/8 inch BSP

• Power Supply
• Battery Operated

• Resolution
• 0.1 hPa

• Response Time
• <2 seconds

• Temperature
• -10C to 50C

• Test Range
• 600 to 1100 hPa

• Usage
• Laboratory and field measurement

• Equipment Type
• Digital Pressure Gauge

• Accuracy
• 0.5% FS

• Application
• Industrial pressure measurement

• Automation Grade
• Manual / Semi-Automatic

• Control Mode
• Push Button / Automatic

• Display Type
• LCD, 4 digit

• Features
• Overload protection, backlight, auto-off

• Gas Pressure
• 0 - 20 bar

• Humidity
• 0% RH to 85% RH

• Machine Weight
• 250 g

• Measuring Range
• 0 - 1000 bar

• Mounting Type
• Direct Mount

• Operating Voltage
• 3V DC (2 x AAA batteries)

• Port Size
• 1/4 BSP Male

• Power Supply
• 2 x AAA Batteries / 3V DC

• Resolution
• 0.01 bar

• Response Time
• 200 ms

• Temperature
• -10C to 50C

• Test Range
• 0 to 1000 bar

• Usage
• Portable and panel use

• Equipment Type
• Precision Controlled Air Supply

• Accuracy
• 0.1 kPa

• Application
• For laboratory air supply to measuring and testing instruments

• Automation Grade
• Automatic

• Control Mode
• Digital Electronic Regulator

• Display Type
• Digital LCD

• Features
• Microprocessor controlled, high stability, overpressure protection, maintenance-free design

• Frequency
• 50 Hz

• Gas Pressure
• 0-100 kPa (adjustable)

• Humidity
• RH 85%

• Interface Type
• RS232

• Machine Weight
• 18 kg

• Max Height
• 250 mm

• Measuring Range
• 0-100 kPa (adjustable)

• Mounting Type
• Desktop

• Number of Specimens
• 1

• Operating Voltage
• 220V 10%, 50 Hz

• Port Size
• 1/4 BSP

• Power Supply
• 220V AC, 50 Hz

• Resolution
• 0.01 kPa

• Response Time
• < 1 second

• Specimen Size
• 100 mm x 100 mm

• Temperature
• 15C - 35C

• Test Range
• 0-100 kPa

• Test Speed
• Adjustable, 0.1 - 2.0 L/min

• Test Width
• 100 mm

• Usage
• Controlled air supply for test equipment
